CONTEMPORARY ARCHITECTURE

The architectural studio of Carlos Vega has been developing and growing over the past 30 years, producing high quality work for projects of varying scale and design. Always aiming to offer quality and originality, the studio pushes the boundaries of creativity, design and method to create spaces that are not only attractive but practical and comfortable to live in.

Carlos Vega’s designs are a perfect blend of the technical and the aesthetic. He seeks to integrate his designs with the local environment in an elegant and sustainable way.

It is Carlos’ long and lasting love-affair with Zahara de los Atunes that has led to his bringing his architectural creativity to this historical fishing village, with its kilometres of white, sandy beaches and tradition of fishing for blue-fin tuna. Now, hand in hand, and in collaboration with Zahara Villas, the Oasis project is born; a project that combines functionality, design and quality. 2,425 m2 of perfect, sustainable urban design offering modernity alongside tradition.

We are very pleased to note that Adolfo Sanchez, Asturian architect and friend of Zahara for more than 8 years, also lends his expertise to this project.

THE OASIS PROJECT

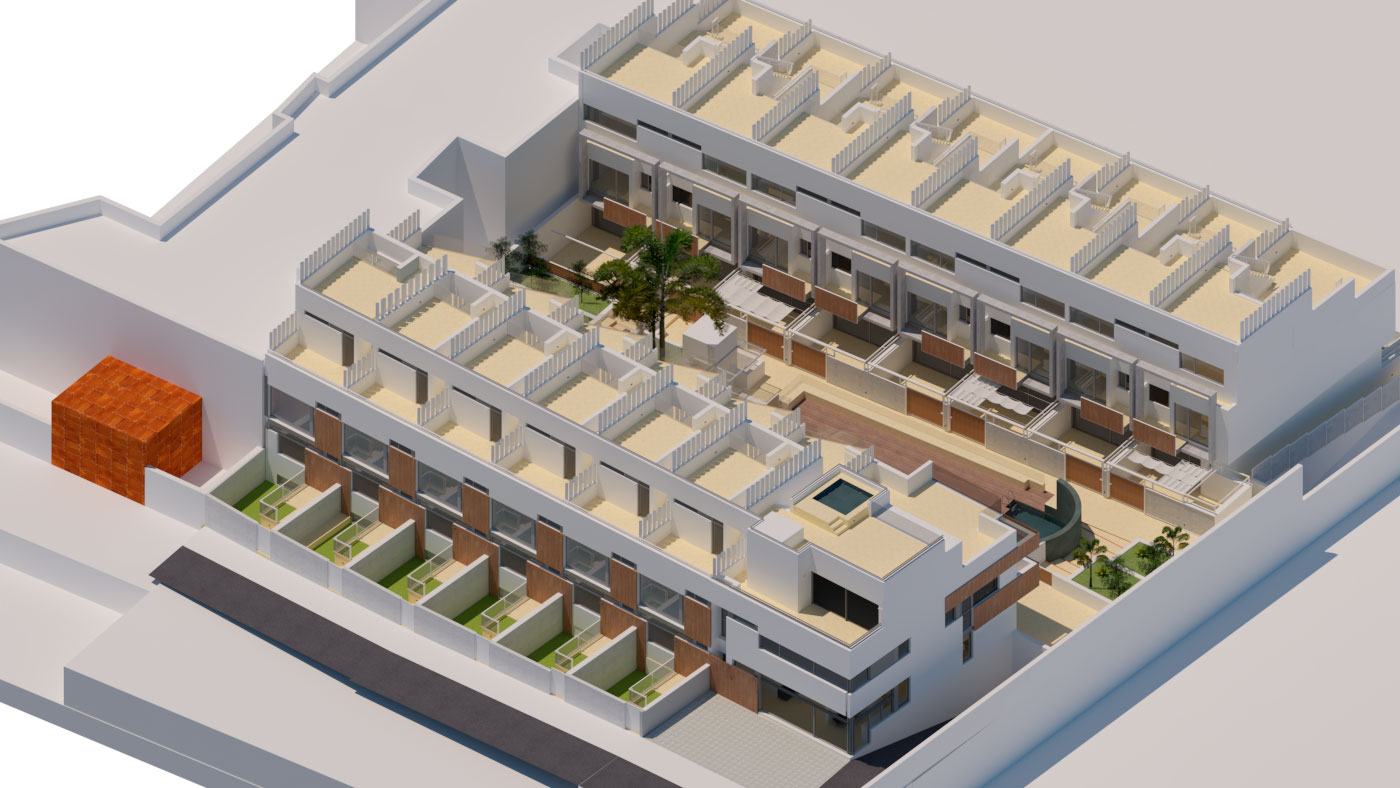

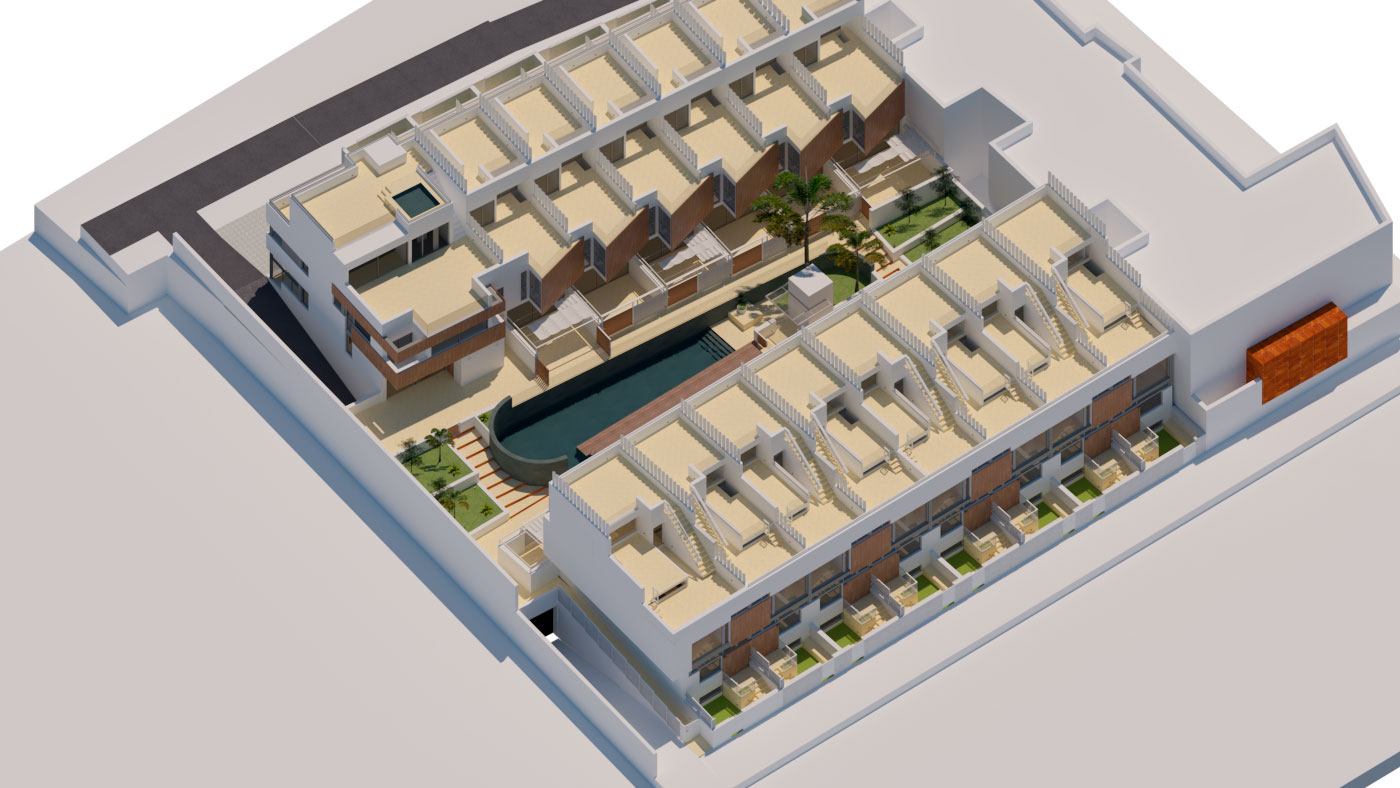

The Oasis project proudly occupies a large plot of land, just 3 minutes from the magnificent Zahara beaches, in a quiet, residential area, popular with locals and tourists alike. This sought after location is away from the central hustle and bustle of this busy, lively village. There is no need for a car here, as to walk to the commercial centre with its plentiful shops, bars, restaurants, hotels, local market, medical centre etc, takes only a few minutes.

The Oasis of Zahara offers a variety of house styles, each with three bedrooms and two bathrooms. Should you, the client, wish to alter the internal design to incorporate up to 4 or 5 bedrooms and 3 or 4 bathrooms, arrangements can be made, according to current plans, to create the perfect space for each individual purchaser.

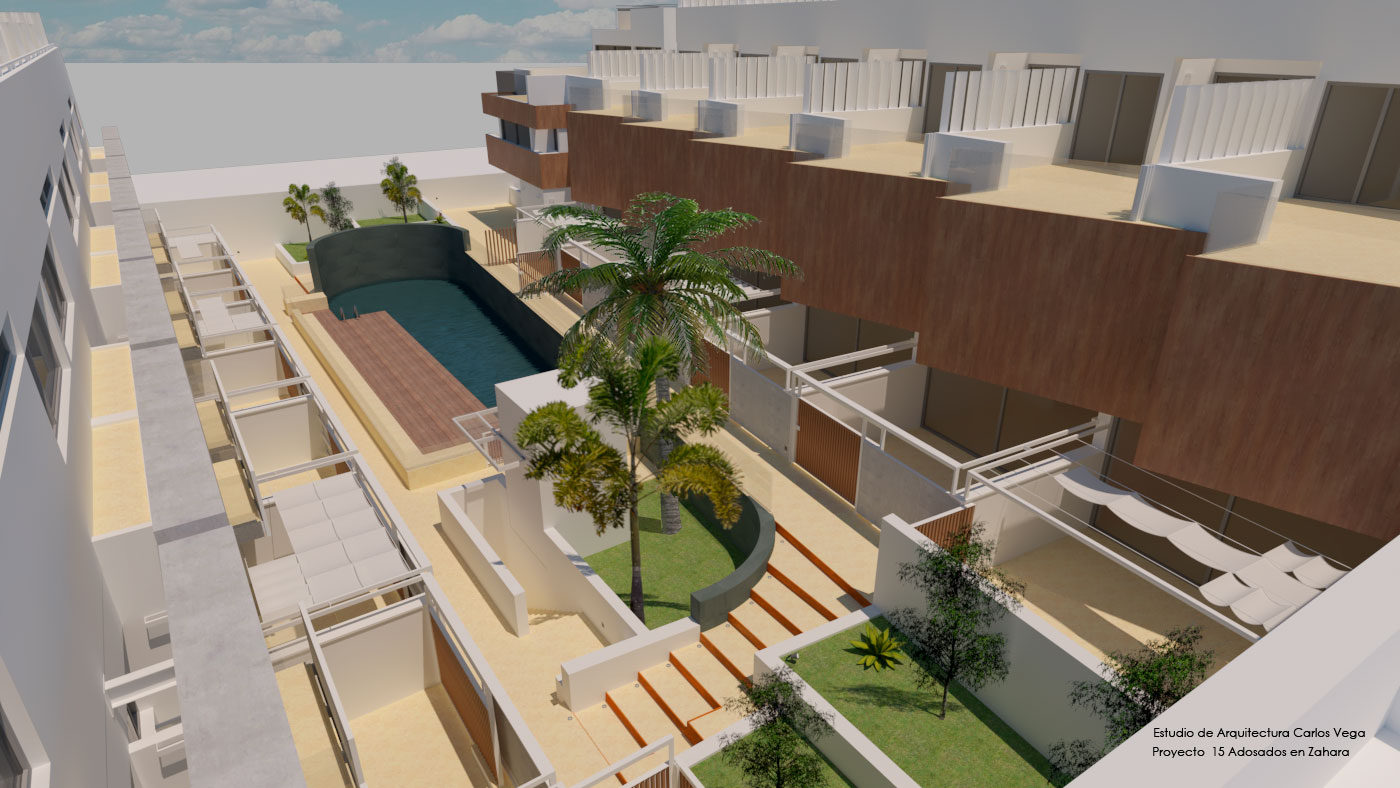

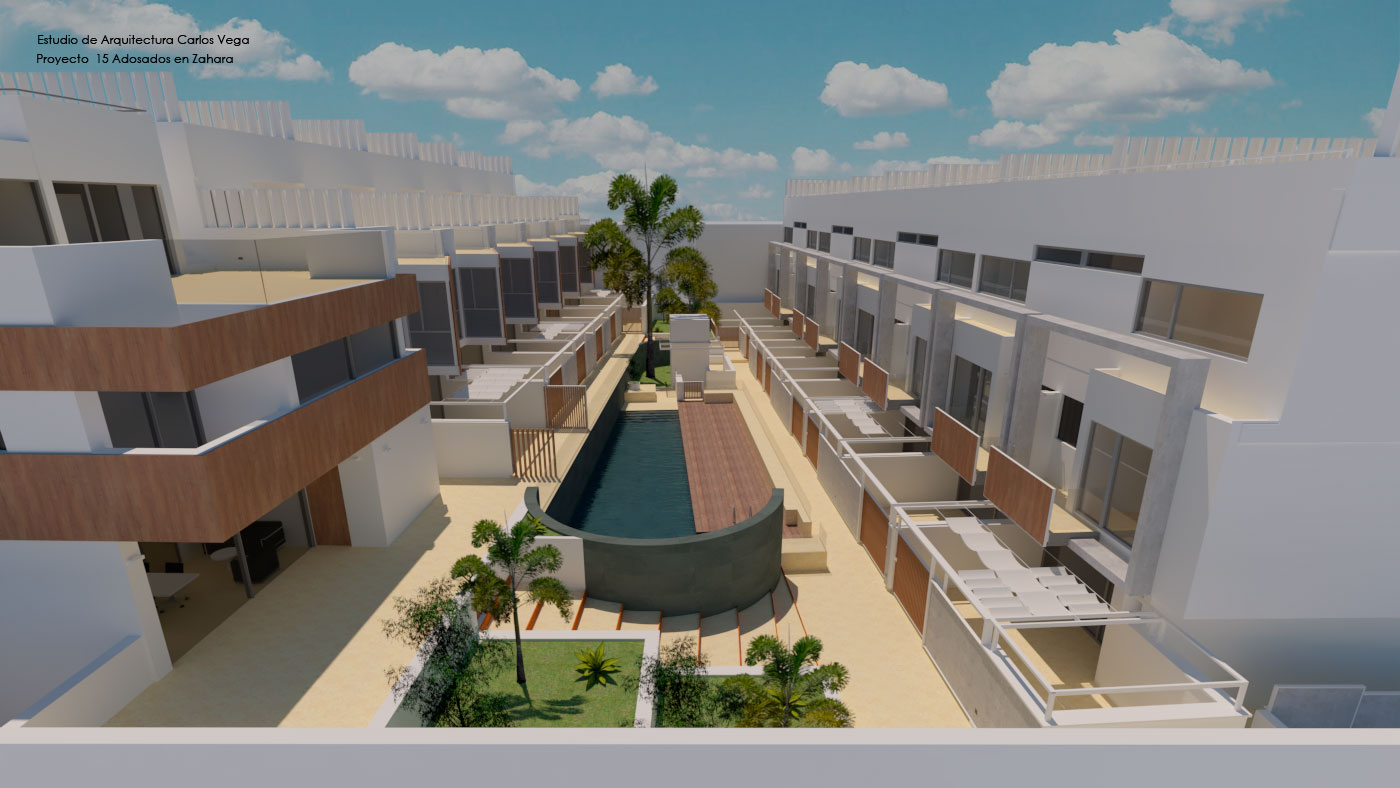

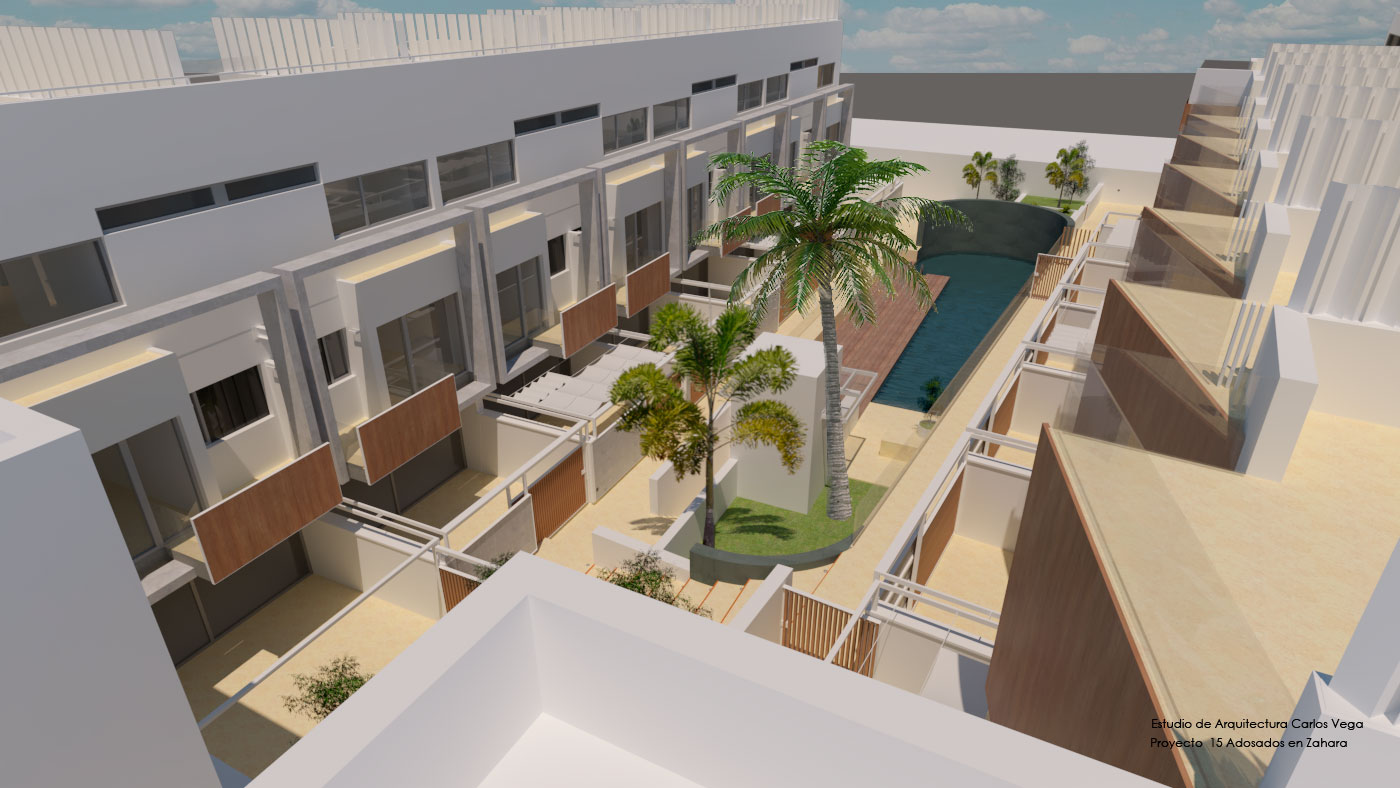

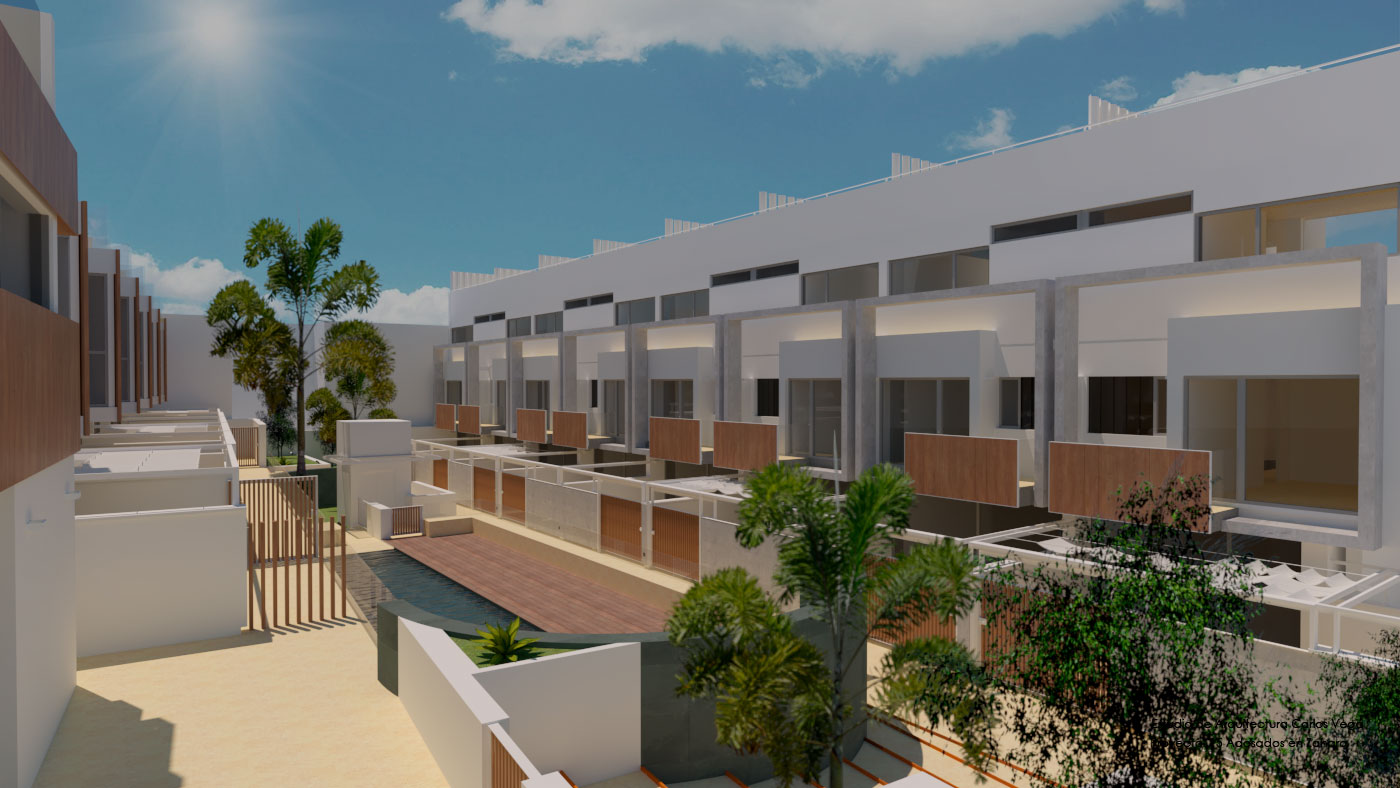

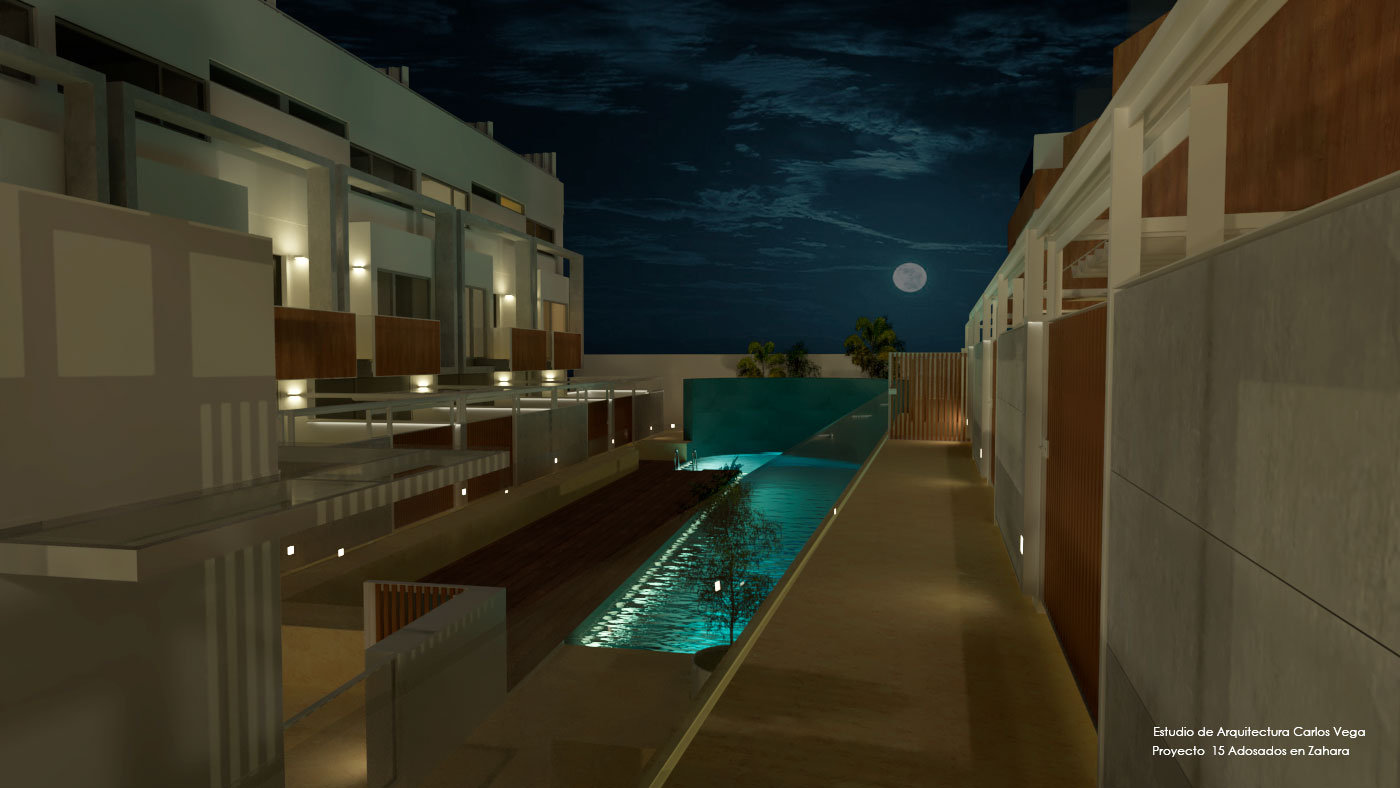

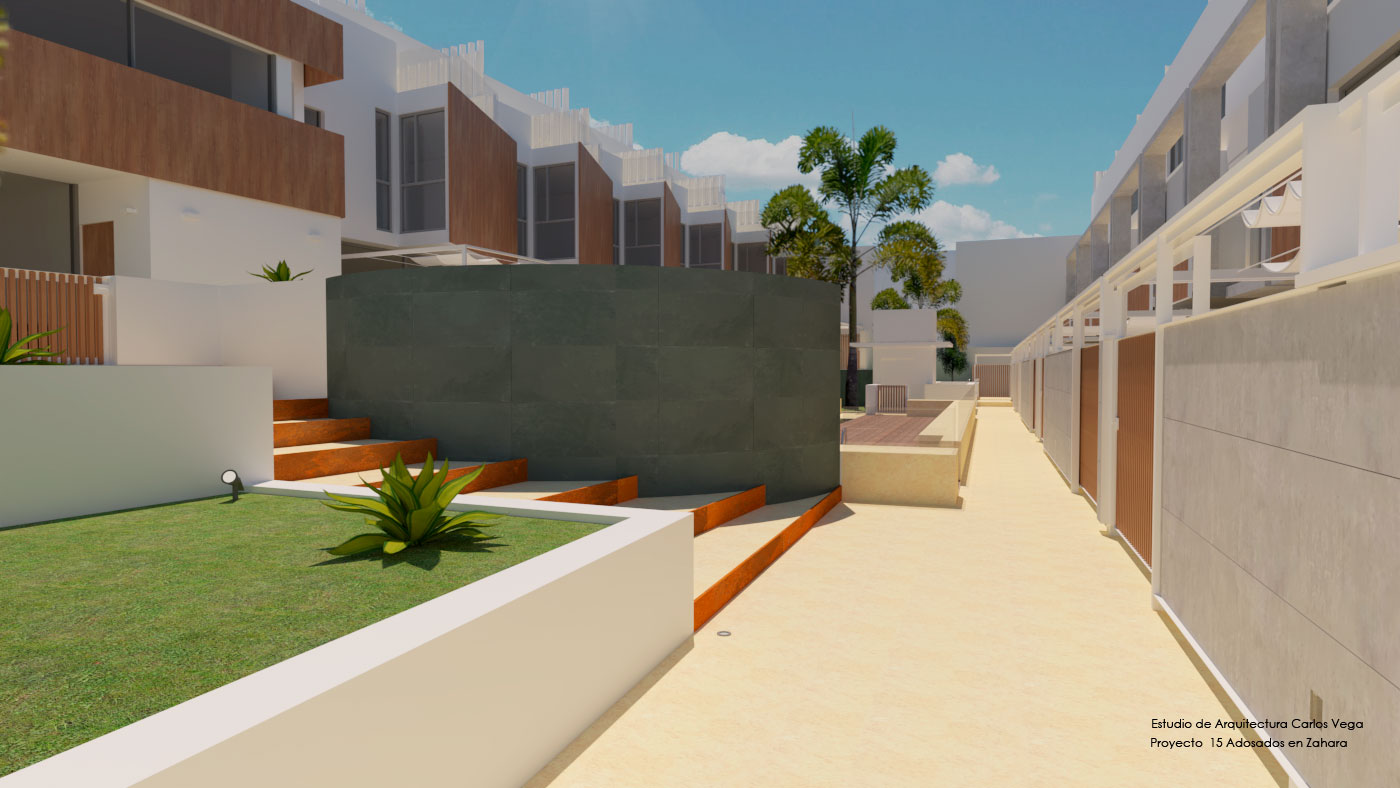

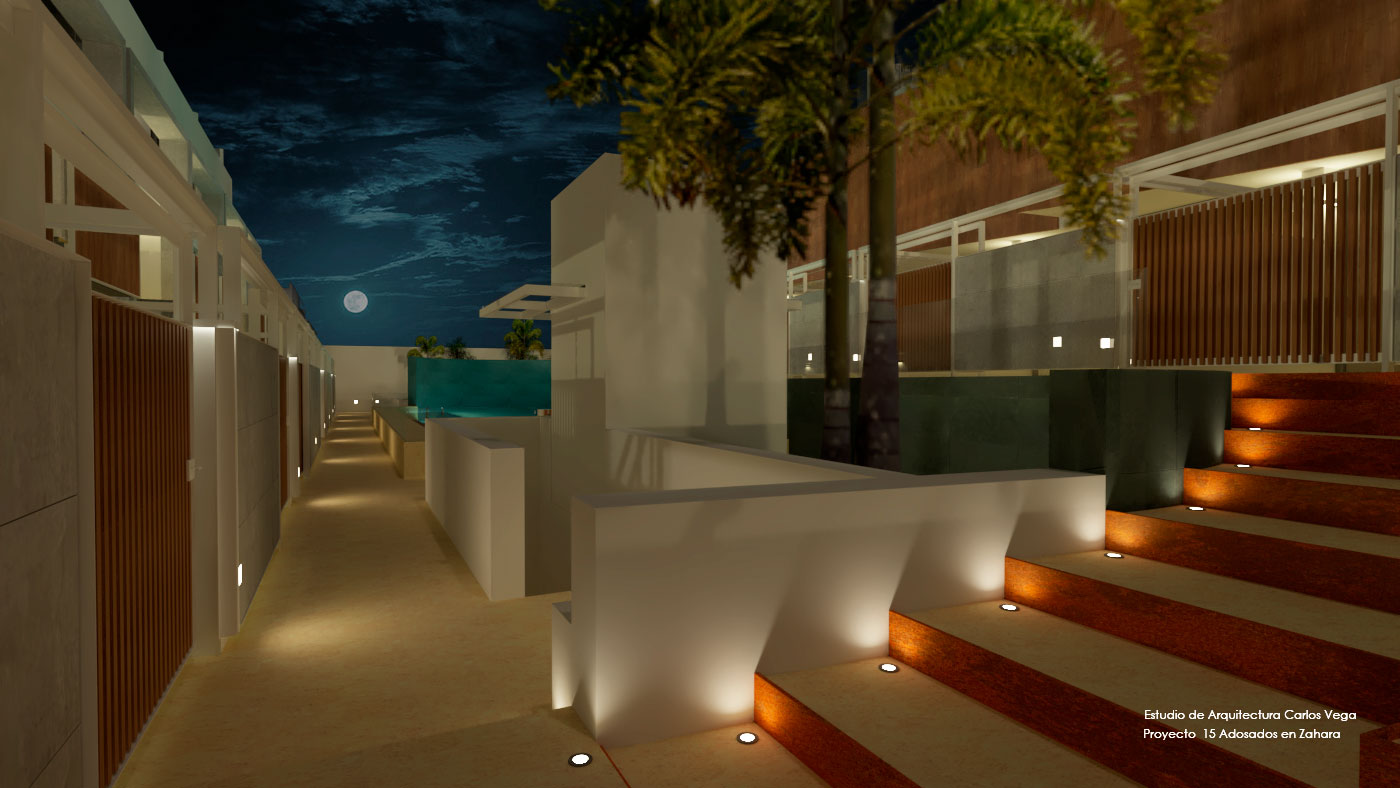

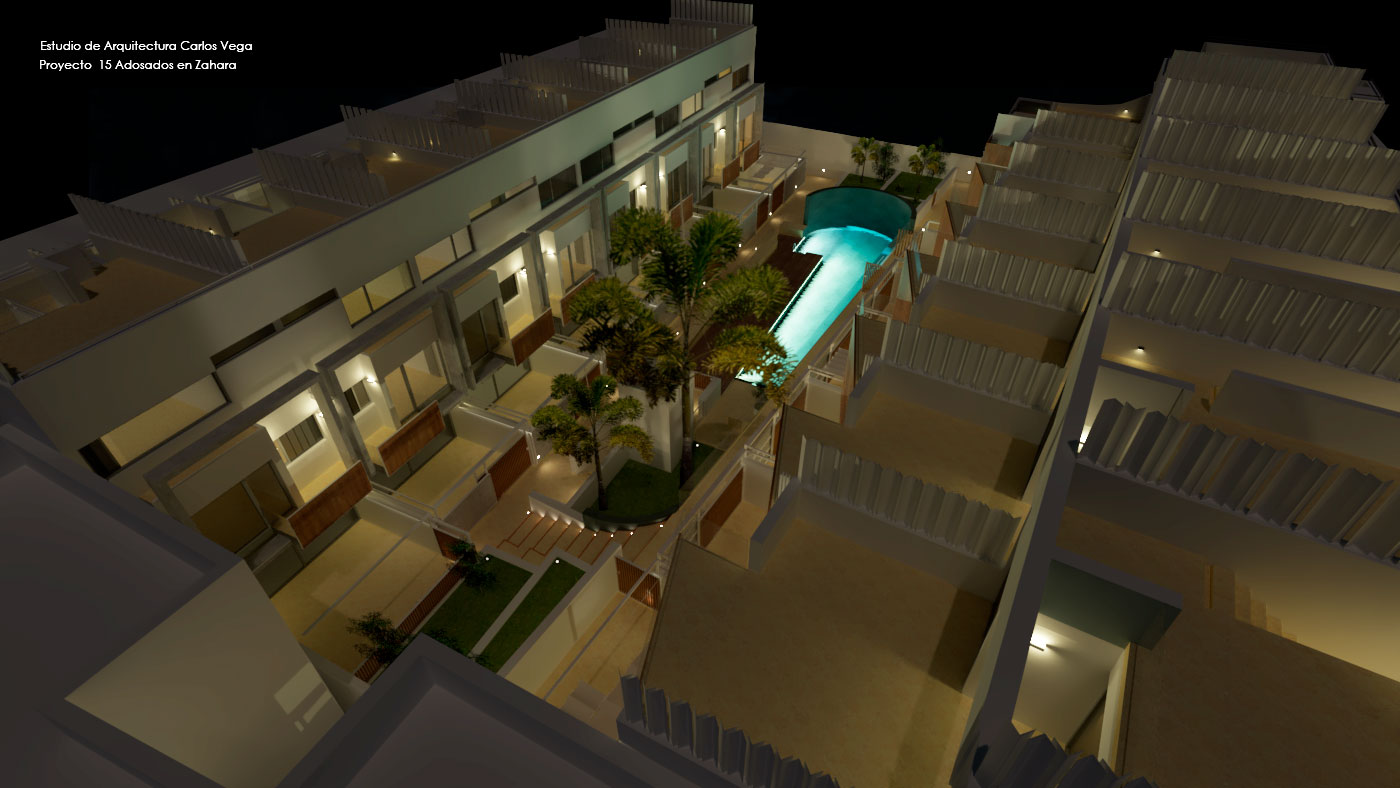

The houses are as follows: A semi-basement floor, ground floor, main floor, second floor and covered roof-room. Large terraces on the upper and lower floors will offer superb sea views. There are two private parking spaces for each property in the semi-basement floor, as well as a private storage area. Each house has its own private, walled garden as well as access to the large communal gardens and communal swimming pool which is centrally located and divides the East and West blocks of the development.

This is a delightfully unusual and creative project that uses design perfection to enhance the relationship between the many spaces that, together, complete each property. The high quality of construction and choice of materials, together with the aesthetics, results in a comfortable, practical space, varying from 256 to 300m2 depending on the individual property.

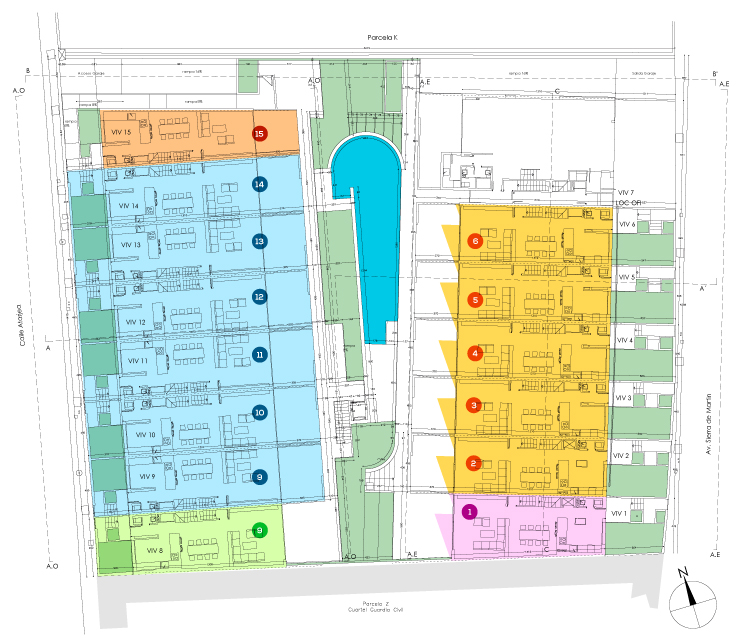

Overall
Floor Plan

Homes 9,10,11,12,13,14

Homes 2,3,4,5,6

Home 8

Home 1

Home 15

Image Click on the home type for detailed blueprints

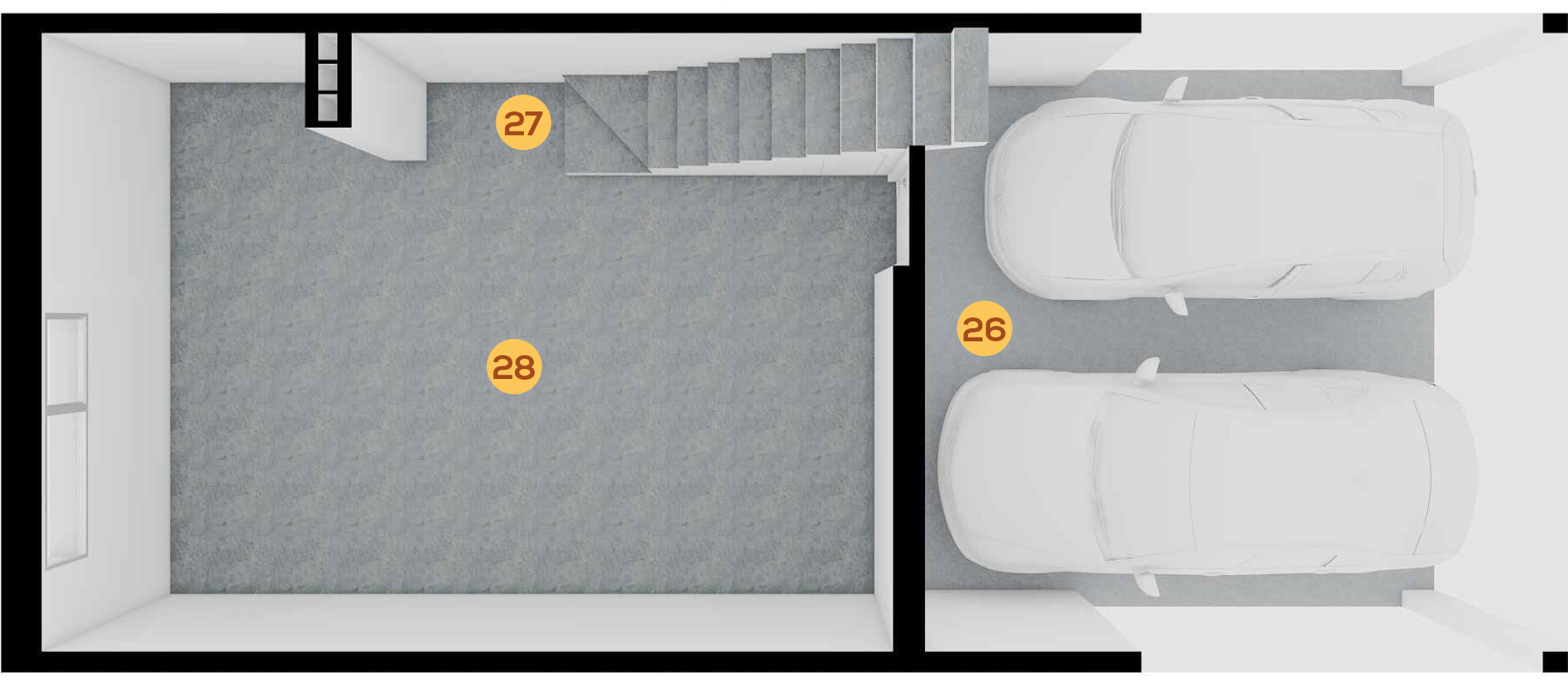

Standard Layout

Semi Basement (Open Plan)

Gross Floor Area

51,44 m2.

Net Floor Area
26 Entry 24.16 m2
27 Access to terrace 3.16 m2
28 Available Space 27.79 m2

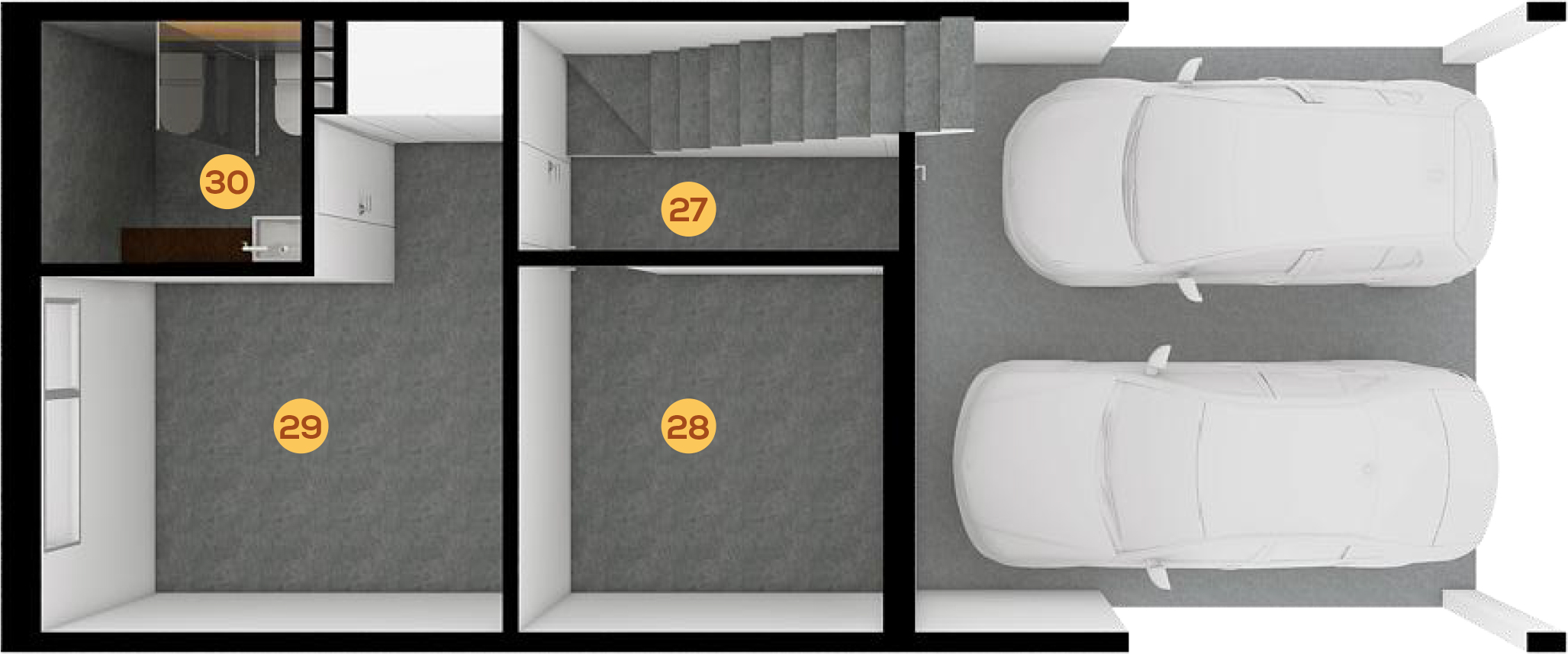

Optional Layout

Semi Basement

Gross Floor Area

51,44 m2.

Net Floor Area
27 Entry 3.16 m2
28 Storage 7.84 m2
29 Bedroom 16.27 m2
30 Bathroom 3.80 m2

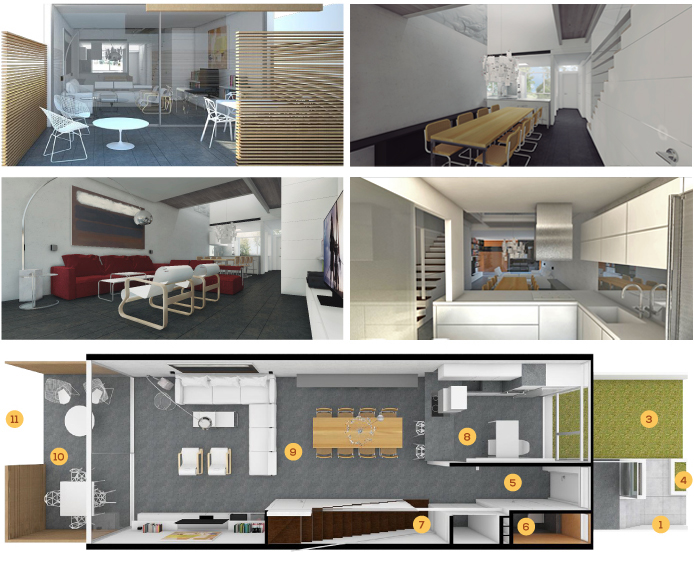

Ground Floor

Gross Floor Area

68,49 m2.

Net Floor Area
1 Entry
2 Access to terrace 4.44 m2
3 Courtyard - Garden 14.85 m2
4 Planter
5 Lobby 2.45 m2
6 Guest W.C./td> 1.49 m2
7 Kitchen 3.88 m2
8 Kitchen 10.54 m2
9 Dining Room 42.71 m2
10 Private Terrace 18.32 m2
11 Communal Areas

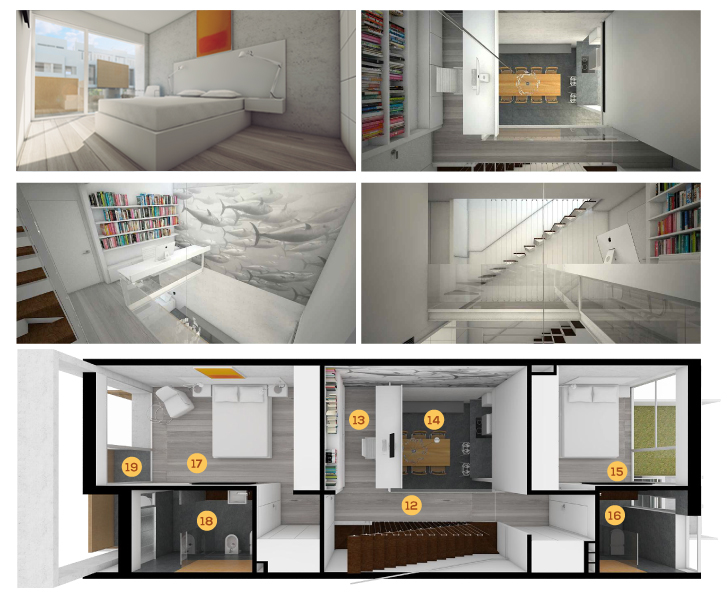

First Floor

Gross Floor Area

59,99 m2.

Net Floor Area
12 Gallery-Staircase 10.31 m2
13 Study 4.44 m2
14 Gap 8.70 m2
15 Bedroom 1 10.15 m2
16 Bathroom 1 3.66 m2
17 Master Suit 16.29 m2
18 Master Bathroom 5.01 m2
19 Bedroom's Terrace 3.73 m2

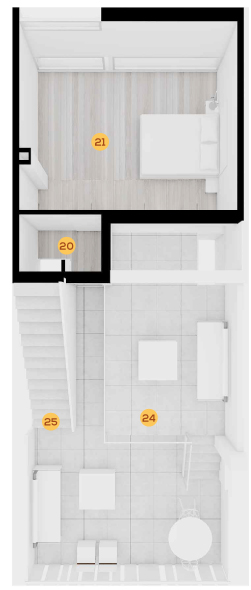

Standard Layout

Atic (open plan)

Standard Layout

23,34 m2.

Net(floor area)
20 Entry 2.40 m2
21 Bedroom 3 18.20 m2
24 West Terrace 37.31 m2
25 Access to Rooftop terrace
26 Rooftop Terrace 23.71 m2

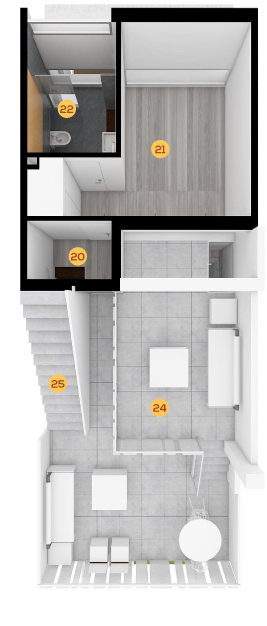

Optional Layout

Atic

Gross Floor Area

23.34 m2.

Net(floor area)
20 Hall 2.40 m2
21 Bedroom 3 13.20 m2
22 Bathroom 4.99 m2
24 West Terrace 37.32 m2
25 Access to Rooftop Terrace
26 Rooftop Terrace 23.71 m2

QUALITY REPORT

Foundation and Structure
  • 50 cm thick concrete foundation slab on bolus and subbase; perimeter reinforced concrete walls in below ground areas, waterproofed, with drainage membrane and perimeter drainage with connection to sanitation.
  • Structure of beams, pillars and walls of reinforced concrete and unidirectional slabs and concrete slabs.
Façades
  • Enclosures of 1/2 foot of solid perforated brick, plastered inside, rock wool insulation and lining of laminated plasterboard or double hollow brick partition.
  • Depending on the areas, the façades will be treated externally with water-repellent plaster painted with mineral paints or they will be covered with phenolic wood boards or similar (PRODEMA).
Covers
  • Walkable inverted roofs with lightened concrete slopes with liquid roof waterproofing system type Recuflexim "WÜRTH" and thermal insulation of rigid extruded polystyrene panels.
  • Large format R3 porcelain flooring on adjustable plots for perfect flatness and drainage in common AND PRIVATE spaces on the ground floor. For the rest of the roofs, large-format porcelain tile R3
Interior distribution
  • Interior partitioning using plasterboard, double on each side, and acoustic insulation.
  • Double hollow partition in wet areas.
Floors
  • Large-format SALONI porcelain, on all floors.
  • Polished concrete flooring in the basement floor parking areas and diamond point tile flooring in the basement floor ramps.
  • Stairs with oak treads on stairs between ground floor, first floor and attic floor.
  • On the access stairs from the basement to the ground floor of each dwelling, the steps are porcelain.
Coating
  • Lacquered DMH paneling with exploded views in certain areas of the house with flush doors.
  • Porcelain tile in the shower area.
  • Sandblasting treatment of structural concrete.
  • Wall coverings in certain areas with polished varnished perlite and satin plastic paint.
  • Wall coverings in certain areas with cladding of laminated plasterboard type plasterboard with satin plastic paint.
Kitchen
  • Kitchen with island units, wall units, base units and columns with porcelain countertops equipped with a 1-bowl sink, induction hob with built-in extractor fan, oven, microwave, refrigerator and dishwasher.
Garden and terraces
  • Private terraces and patios with water intake, exterior lighting and plug. Wooden slat enclosures and Viroc panels in interior patios.
  • Roof terraces equipped with electrical outlets, lighting and water points.
Ceilings
  • Perlite-coated ceilings with satin plastic paint and false ceilings with plasterboard-type laminated plasterboard with footlights to accommodate continuous indirect LED lighting.
  • Laminated wood ceilings with oak finish on the first floor walkway leading to the bedrooms.
Telecommunications
  • External FM, DAB and UHF antennas
External woodwork
  • Top quality aluminum carpentry, Cortizo brand with thermal bridge break, anthracite finish.
  • Climalit-type double glazing with one sheet of laminated glass and another of low-emissive glass.
  • Motorized aluminum slat blinds in bedrooms on the first floor.
  • Balustrades of galvanized and painted metal profiles and laminated glass.
Indoor carpentry
  • Security entrance door paneled to the outside with Prodema brand phenolic boards, flush with the façade cladding of the same material.
  • Interior doors in lacquered DMH with exploded views and flush with panels of the same material.
  • Modular cabinets with pre-installation for lighting with doors in DMH lacquered with the same breakdown of the panels. Including shelves and hanging rail, dresses.
Bathrooms and faucets
  • Casa Tres faucets, top quality in showers, bidets and built-in in sinks and main shower.
  • White porcelain sinks on porcelain countertops and laminated wood furniture.
  • Toilets and bidets, suspended Duravit or similar.
  • Screens in all showers.
Plumbing installations
  • Plumbing network with cross-linked polystyrene pex pipe.
  • Production of domestic hot water with aerothermal system and DHW return network.
  • Water points on terraces and private garden.
  • Pre-installation for the connection of a private water tank in the private parking area.
  • Pre-installation of plumbing and sanitation with a sewage pump in the basement.
Electricity and lighting
  • Niessen Zenit mechanisms.
  • TV/fm, telephone and data sockets and Video intercom on the ground floor.
  • Pre-installation of single-phase electrical connection for charging electric vehicles in parking spaces.
  • Indirect lighting in gallery areas and false ceilings through continuous LED lines.
  • LED mini spotlights recessed indoors.
  • Partial outdoor lighting
Air conditioning
  • Aerothermal installation for hot/cold air conditioning and DHW through a SAMSUNG system with a SAMSUNG heat pump outdoor unit model AE160MXTPEH/EU Inverter system with internal units in false ceilings with continuous discharge ducts and a SAMSUNG hydrokit unit model SAM-AE260TNWTEH /EH with integrated tank 200 l
Common areas
  • Community parking with two parking spaces per dwelling and pre-installation of a charging socket for electric vehicles per dwelling..
  • Common areas with access from the car park by elevator.
  • Fenced community pool with solarium area and outdoor shower.
  • Direct access from the street to the common interior areas.

FOR FURTHER INFORMATION

If you have any questions, please don't hesitate to contact us. We can assist you in multiple languages, English and German included.

The information provided is non contractual, the project may be subject to alteration. Virtual images provided.
